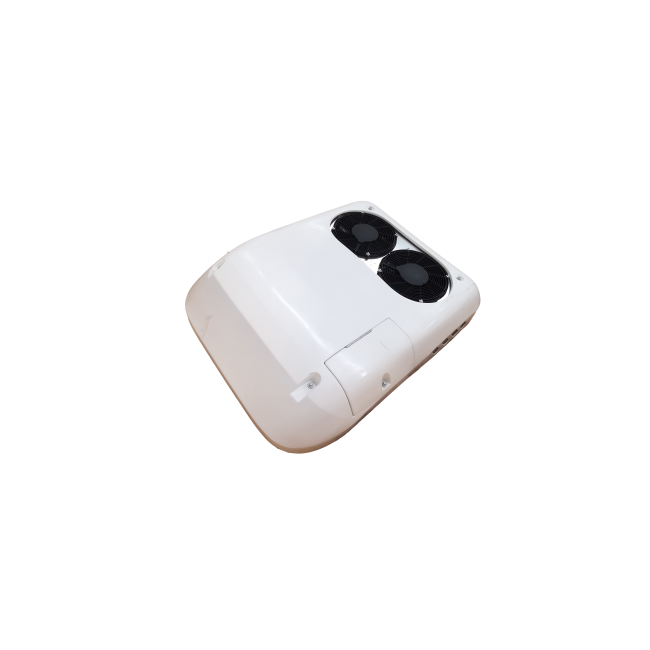

SONGZ JLE-XC Series Roof-mounted Battery Thermal Management System
Technical Specification of Electric Bus BTMS JLE-XC Series
|
Model |
JLE-XC-EB |
JLE-XIC-EF |
|
|
Refrigerant |
R134a/R1234yf |
||
|
Refrigerant Charging Volume |
0.73 kg |
0.76 kg |
|
|
Roof-mounted |
Dimension |
1370*1030*280 (mm) |
1370*1030*280 (mm) |
|
Weight |
60 kg |
65 kg |
|
|
Air Flow Volume Condenser (Fan Quantity) |
2000 m³/h (1) |
4000 m³/h (2) |
|
|
Shell Material |
High strength fiber glass |
High strength fiber glass |
|
|
Cooling capacity (Outlet water temperature 15℃) |
6 kW |
8 kW |
|
|
Cooling Power Consumption |
2.0 kW |
3.5 kW |
|
|
PTC Heating Capacity |
14 kW (Optional) |
14 kW (Optional) |
|
|
PTC Heating Consumption Max |
14 kW (Optional) |
14 kW (Optional) |
|
Features
01
Performance
the BTMS can measure and monitor the battery temperature in real time through the BMS system. The cooling and heating reaction speed is fast.
02
Energy saving
the refrigeration module electrical control system adopts advanced frequency conversion control technology and high efficiency DC frequency conversion scroll compressor, which is about 20% energy saving than ordinary compressor.
03
Environmental protection
BTMS is independent, using parallel flow condenser and plate heat exchanger, which make sure to have the refrigerant charge less.
04
High safety
the product has designed two stage insulation, high and low pressure and pressure relief protection device, which greatly guaranteed the safety of product use.
05
Easy installation
the BTMS does not need to refrigerate on site, and the body is connected with hot water pipes for easy installation.
06
High reliability
the control system adopts single-chip microcomputer control technology, mature and reliable. Long life, low noise, no maintenance, longer life than general brush fan, compressor design life of 15 years, low failure rate.
07
PTC heating function
at low temperature, PTC electric heater heating, to ensure that products in the cold area can also be able to use.
